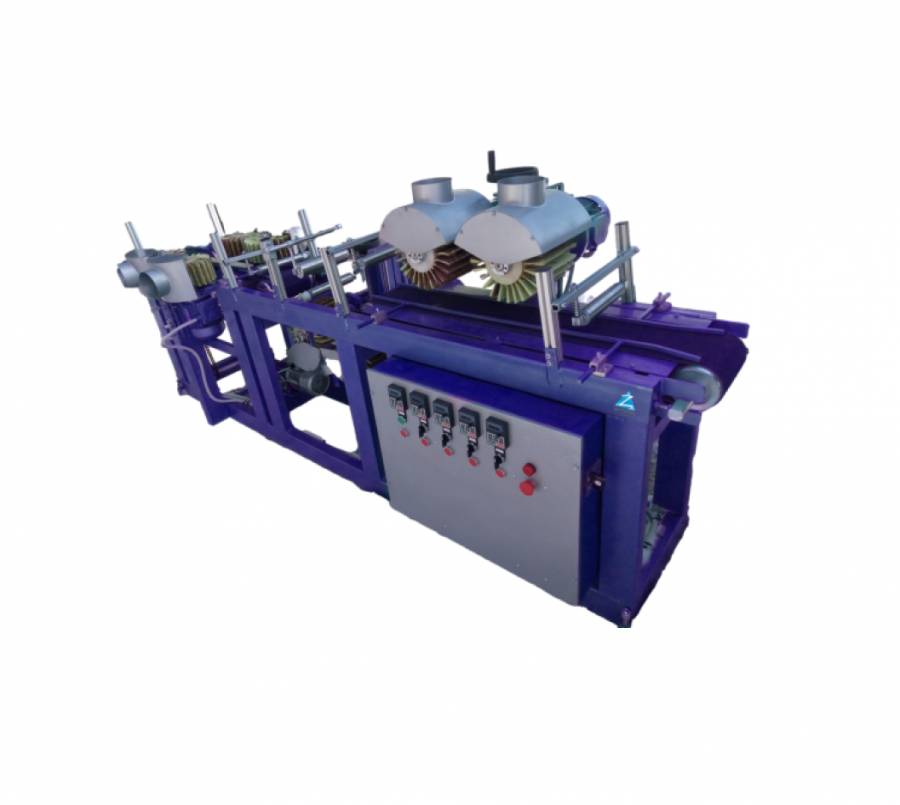

SHP-6 2-node machine for small volumes

2-node machine for small production volumes 6 spindle machine with grinding units
  Email Engine 1.5 kW/950 rpm. 6 pcs x 1.0 kW/950 rpm.
Supply voltage 3 phase/380V/50Hz 3 phase/380v
Spindle shaft length 200+200 mm 200mm
Number of shafts 2 pcs. 6 pcs.
External Ø instr. 150-250 mm 150 mm…250 mm
Naib. Shir. blanks 200 mm 200 mm
Total weight 76 kg 650 kg
Dimensions l/w/h 650x600x750 mm 2500x600x1350 mm
0 грн.

Find out the price






Additional Info

  • Цена
    0
  • Характеристика

    Producing country Ukraine
    Power consumption  6 kW
    Grinding width  200 mm
    Suction rate  4000 cu. m/hour
    Suction pipe diameter  100 mm
    Maximum feed rate  12 m/min
    Feed motor power  1 kW
    State New
    Max disc diameter  250 mm
    Idle speed  950 rpm
    Number of speeds 12 pcs.
    Machine type Drum
    Network settings
    Voltage  380 V
    Frequency  50GHz
    Common parameters
    The weight 650 kg
    Length 2500 mm
    Width 600 mm
    Height 1350 mm
    Extra options
    Workpiece length  9000 mm
    Workpiece width  200 mm
    Workpiece thickness  100 mm
    Tape/sheet width  200 mm
    Table length 2500 mm
    Table width 200 mm
    Number of grinding discs  6 pcs.
    Bore diameter  30 mm
