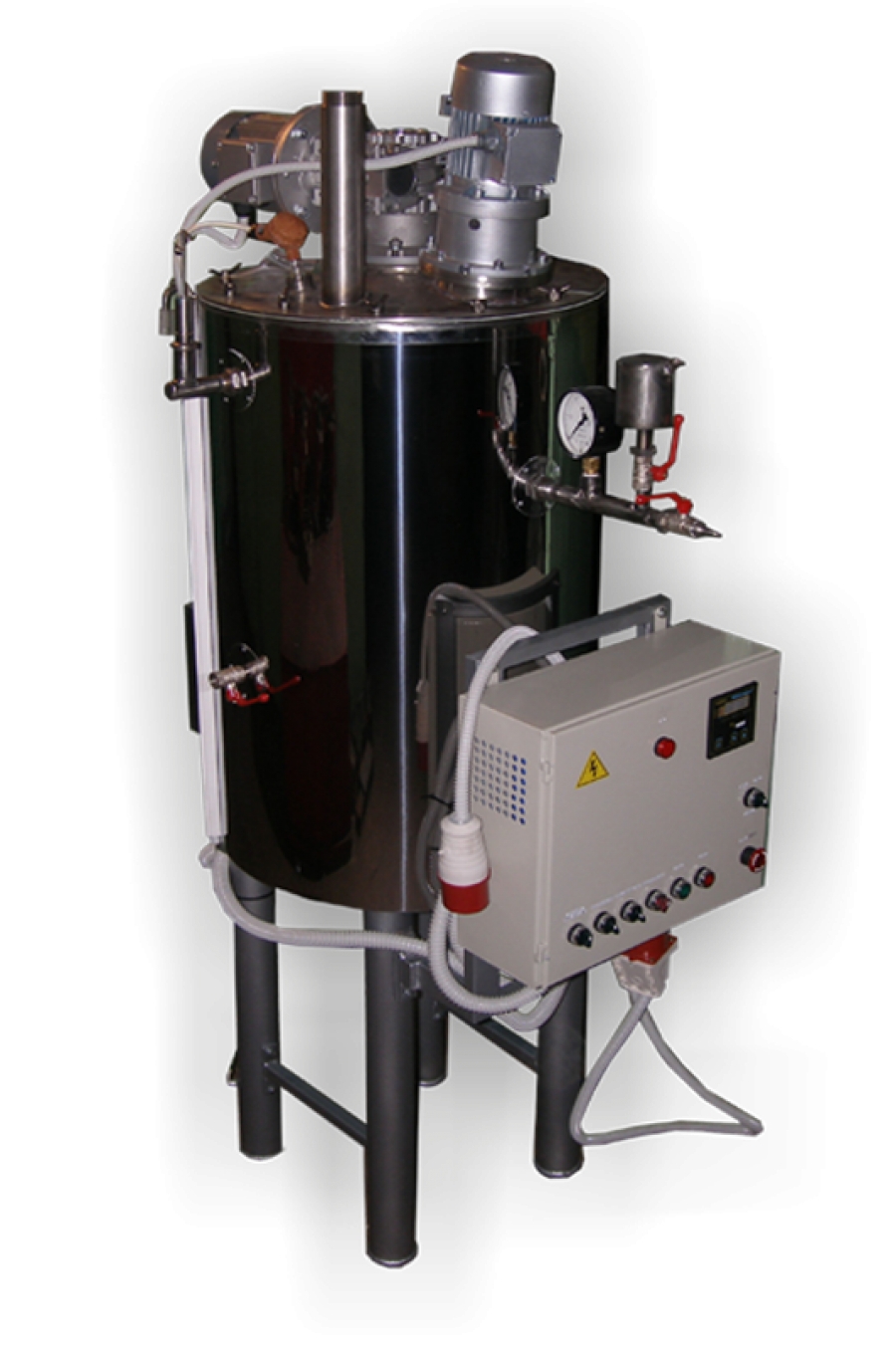

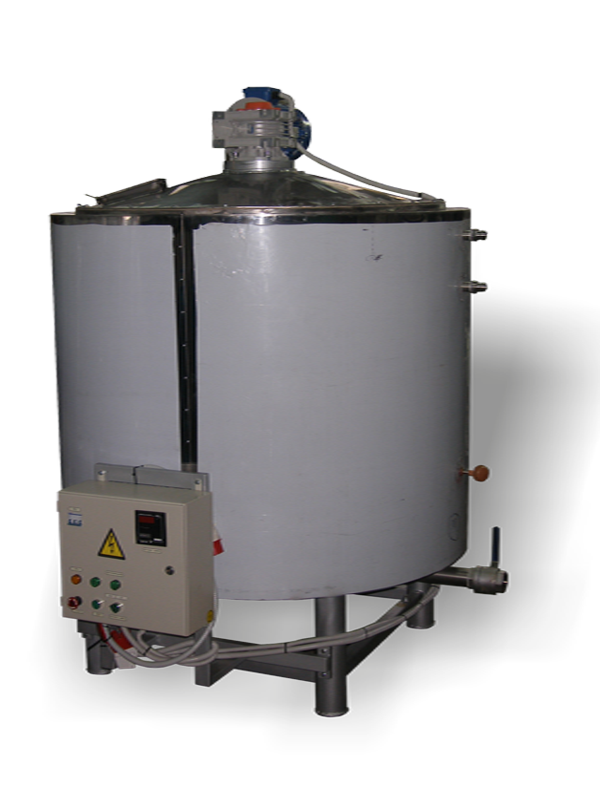

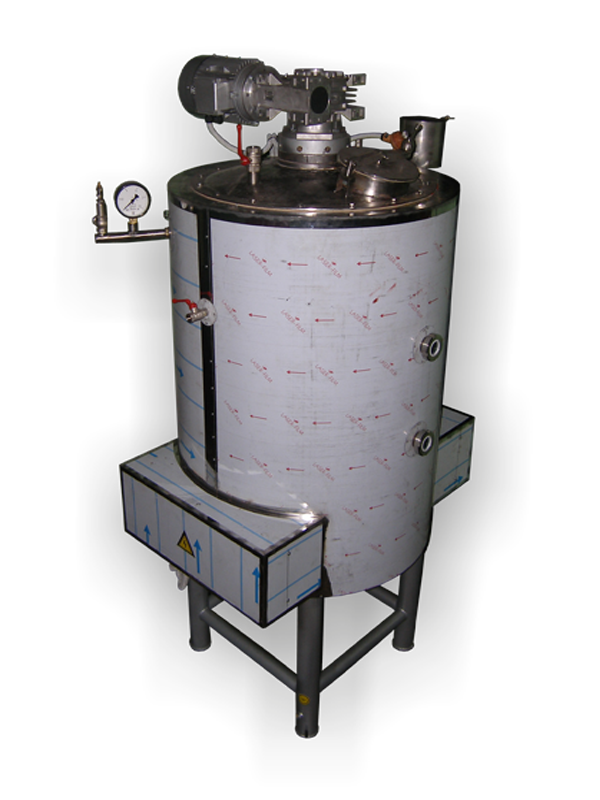

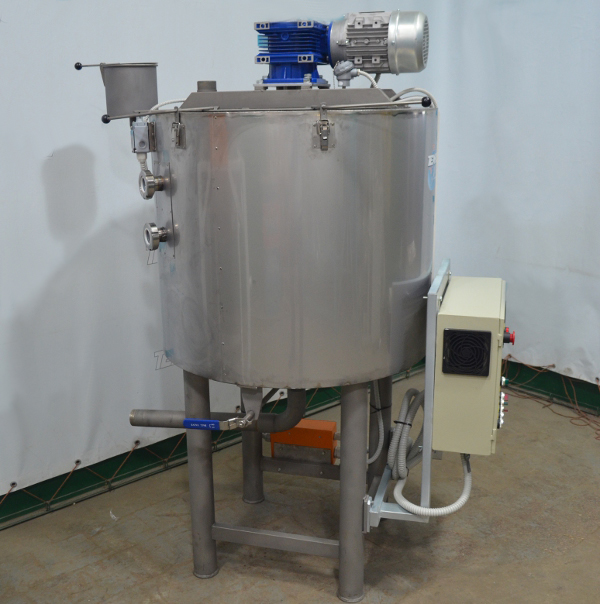

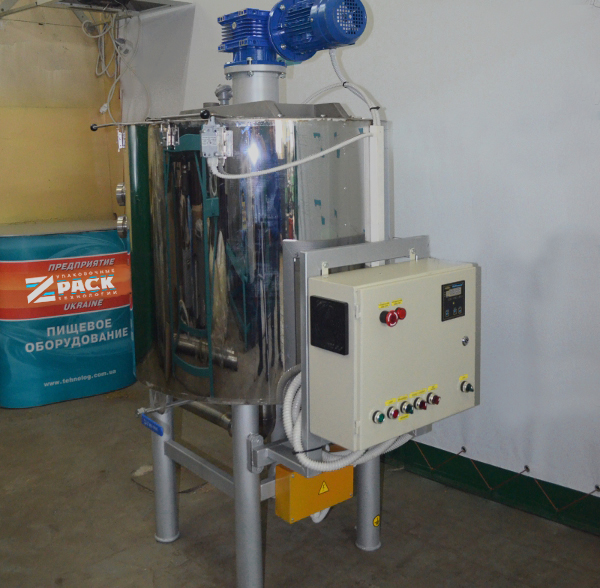

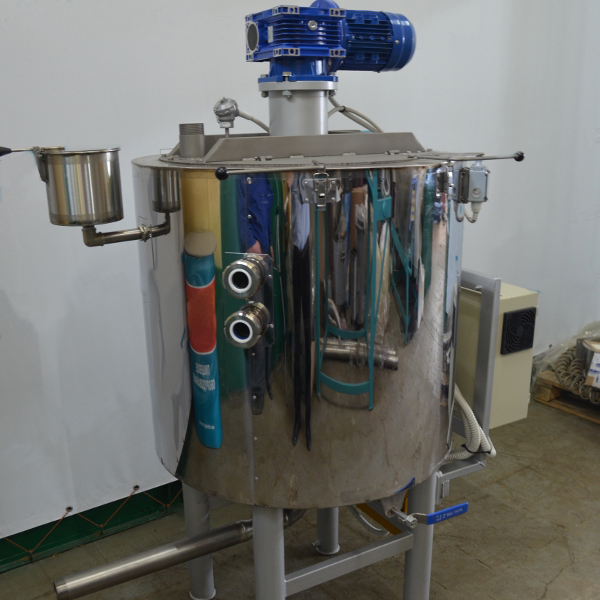

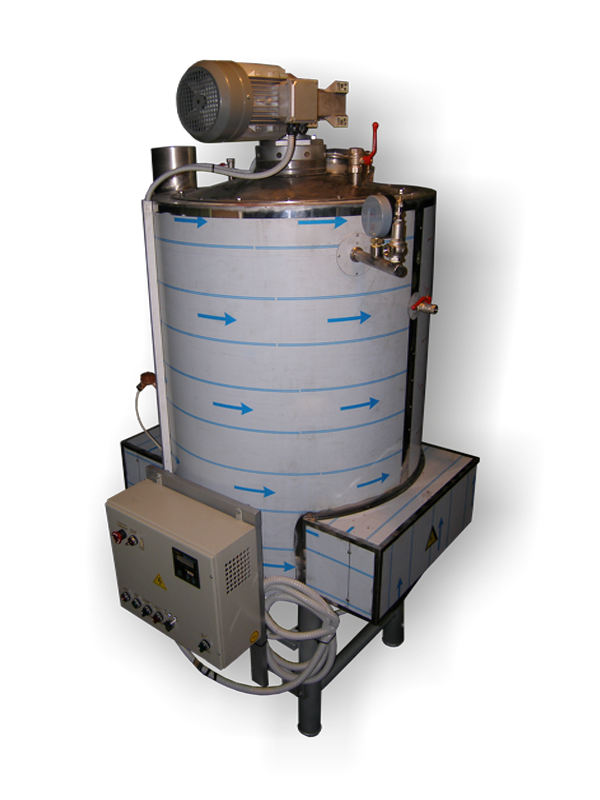

SMG mixer with heating and agitator for liquid, thick products

Mixers are designed for automatic mixing of liquid, viscous and pasty food, confectionery, pharmaceutical, chemical and cosmetic products. The equipment is also used for the production of various suspensions, emulsions, solutions.

233334 грн.

Find out the price






Additional Info

  • Цена
    233334
  • Characteristic
    Total volume of the container, dm. cube. SMG-50 SMG-120 SMG-280 SMG-630 SMG-1230
    Agitator rotation speed, rpm 24-30 24-30 24-30 24-30 24-30
    Frame mixer, removable with scrapers + + + + +
    Agitator drive power, kW 0.37 1.5 2.2 3.0 5.5
    The presence of a heating shirt + + + + +
    Power of heating elements of the shirt, kW 6 9-12 18 24 30
    Temperature in the working container, deg. Celsius 90* 90* 90* 90* 90*
    Overall dimensions, m (LxWXH) 0.65*0.65*1.1 0.8*0.75*1.45 0.9*0.85*1.75 1.1*0.95*2.35 1.3*2.75
    Availability of automatic temperature and time adjustment
    availability of thermal insulation with mirror stainless steel cladding
    *At the request of the customer, the temperature can be increased to 140 degrees. Celsius
  • Job description

    Mixing device – removable mixer with scrapers with an imported motor-reducer. In addition to the main mixer, the mixer can be equipped with a high-speed turbine for better mixing of the product, breaking up lumps.

    Product loading is carried out through the hatch in the lid of the working container, unloading – through the valve in the conical bottom.

  • Features

    How a heat carrier in a shirt can be:

    • water;
    • glycerin;
    • thermal oil;
    • par.
  • Complete set

    Mixer - container made of food-grade stainless steel with a heat-insulated jacket and a conical bottom. Heaters for heating the coolant in the shirt are installed in the lower part of the container.

    At the request of the Customer, the mixer is equipped with a pump with a pipeline for pumping the product for re-mixing or for feeding to the next technological operation.

    In addition, the mixer can be equipped with a frequency regulator to adjust the frequency of rotation of the mixer or turbine. The equipment can be made with a tipping function.

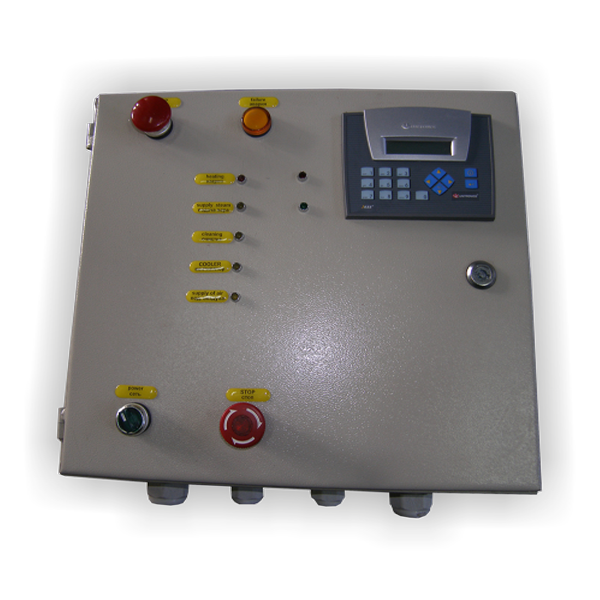

    The mixer is equipped with a control panel, on which the time and temperature parameters of mixing are set.

  • Opportunities
    rpm 24-30
