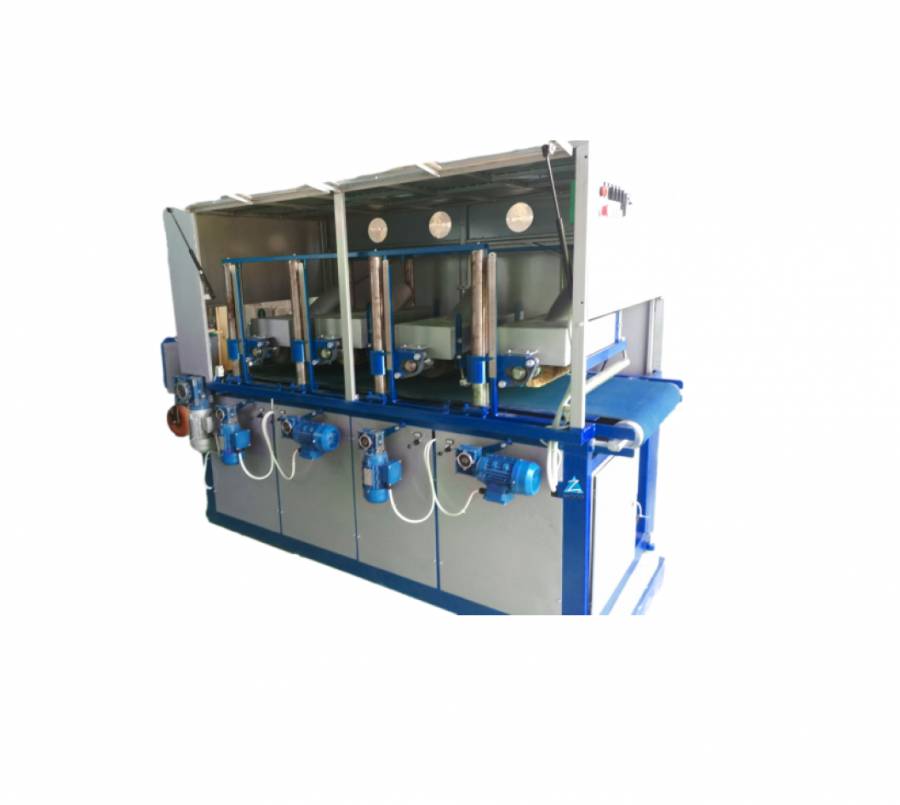

Machine for wood aging SSD-4-650
Designed for artificial aging ( brushing ) of wooden blanks
with maximum dimensions up to 650x100 mm.
Functionally, it consists of a base with a conveyor feed of the workpiece and 4 height-adjustable units with cylindrical brushes.
The warranty period for the supplied products is 1 year
| Email Engine | 3 pcs x 3.0 kW/950 rpm. +1 piece x 1.0kw/950rpm |
| Supply voltage | 3 phase/380V/50Hz |
| Number of shafts | 4x650mm |
| Tool outside diameter | 150-250 mm |
| Naib. Shir. blanks | 650 mm |
| Total weight | 920 kg |
| Dimensions l/w/h | 2500x1300x1550 mm |
Find out the price
Additional Info
-
Цена0
-
Характеристика
Producing country Ukraine Grinding width 650 mm Suction rate 4000 cu. m/hour Suction pipe diameter 120 mm Maximum feed rate 12 m/min Workpiece feed Automatic Feed motor power 3 kW State New Max disc diameter 250 mm Idle speed 950 rpm Number of speeds 12 pcs. Machine type Drum Network settings Voltage 380 V Frequency 50GHz Common parameters The weight 920 kg Length 2500 mm Width 1300 mm Height 1250 mm Extra options Workpiece length 9000 mm Workpiece width 650 mm Workpiece thickness 150 mm Tape/sheet width 650 mm Table length 2500 mm Table width 650 mm Number of grinding discs 4 things. Bore diameter 32 mm
