Additional Info

• Цена
  243600
• Характеристика







• Characteristic

  Electricity, V/Hz 220 / 50

  Energy savings, kW/year 1.5

  Pneumoenergy**, atm./l.hv. 6/200

  Dovzhina / Width / Height (no more), mm 900/1100/2300

  Vaga (no more), kg 180

  Width/Diameter of the smelting roll (max.), mm 250 / 300

  Productivity (max.)*, pack./year 2400-12000

  Volume of accumulative bunker, l 20

  Dosing range, div.cube 2-20

  L/W packaging (max.), mm 200 / 17-35

  * Efficiency of the possession to lie down depending on the dose, the power of the packaged products, the power of the packaging material and the packaging.



  ** To ensure the operation of the pneumatic actuators of the filling machine, the presence of a compressor is required.

• Опис роботи





• Job description

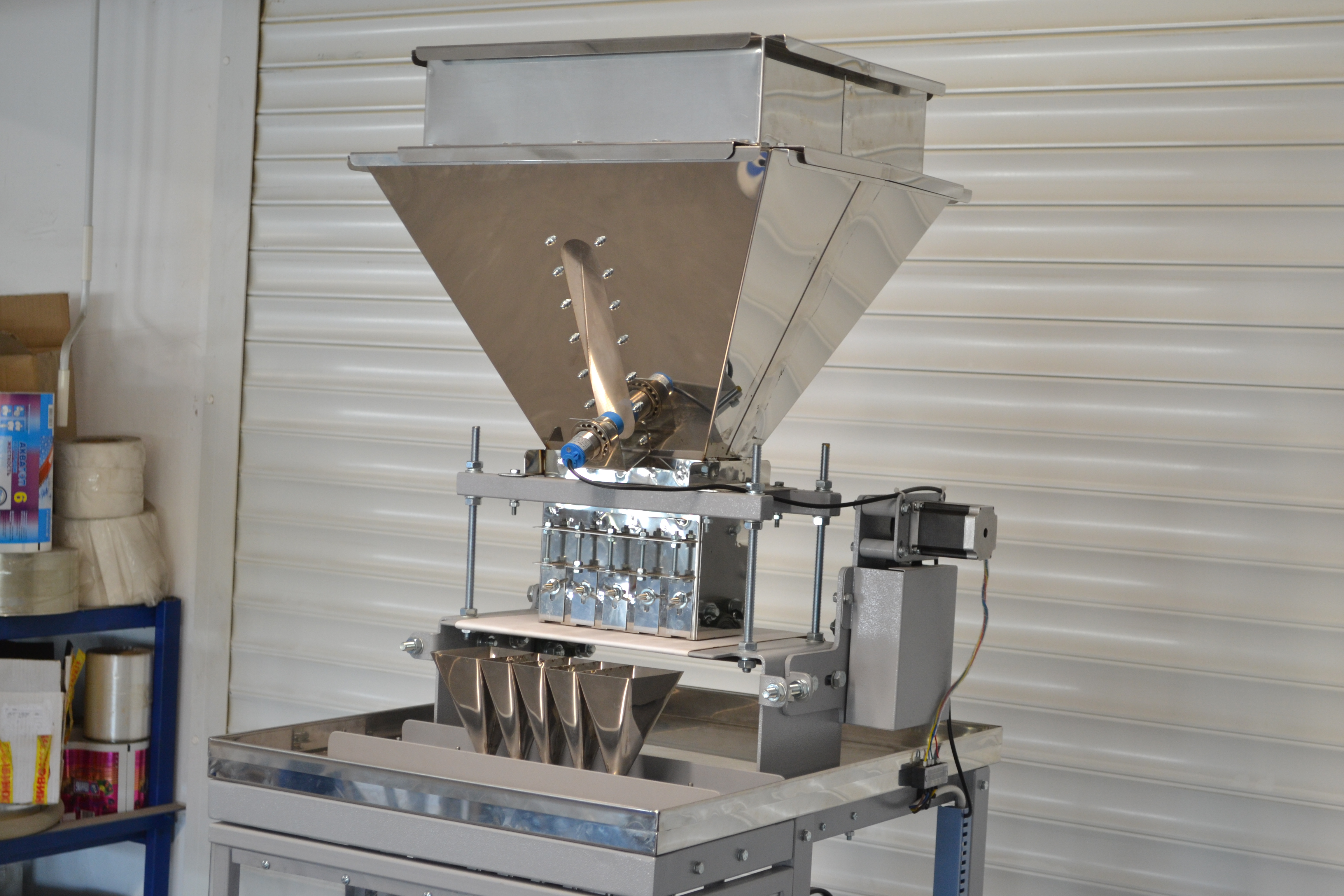

  The dosing of the product, leading to a good connection with the line of the dispenser, rises from the neck of the hopper, which it delivers (through the regulation of the shutters in the bunker) and moves the product to the vents, hangs into the tubes through the holes. The product should go through the tubes to the formed package (stick) and fill it up to the specified level.

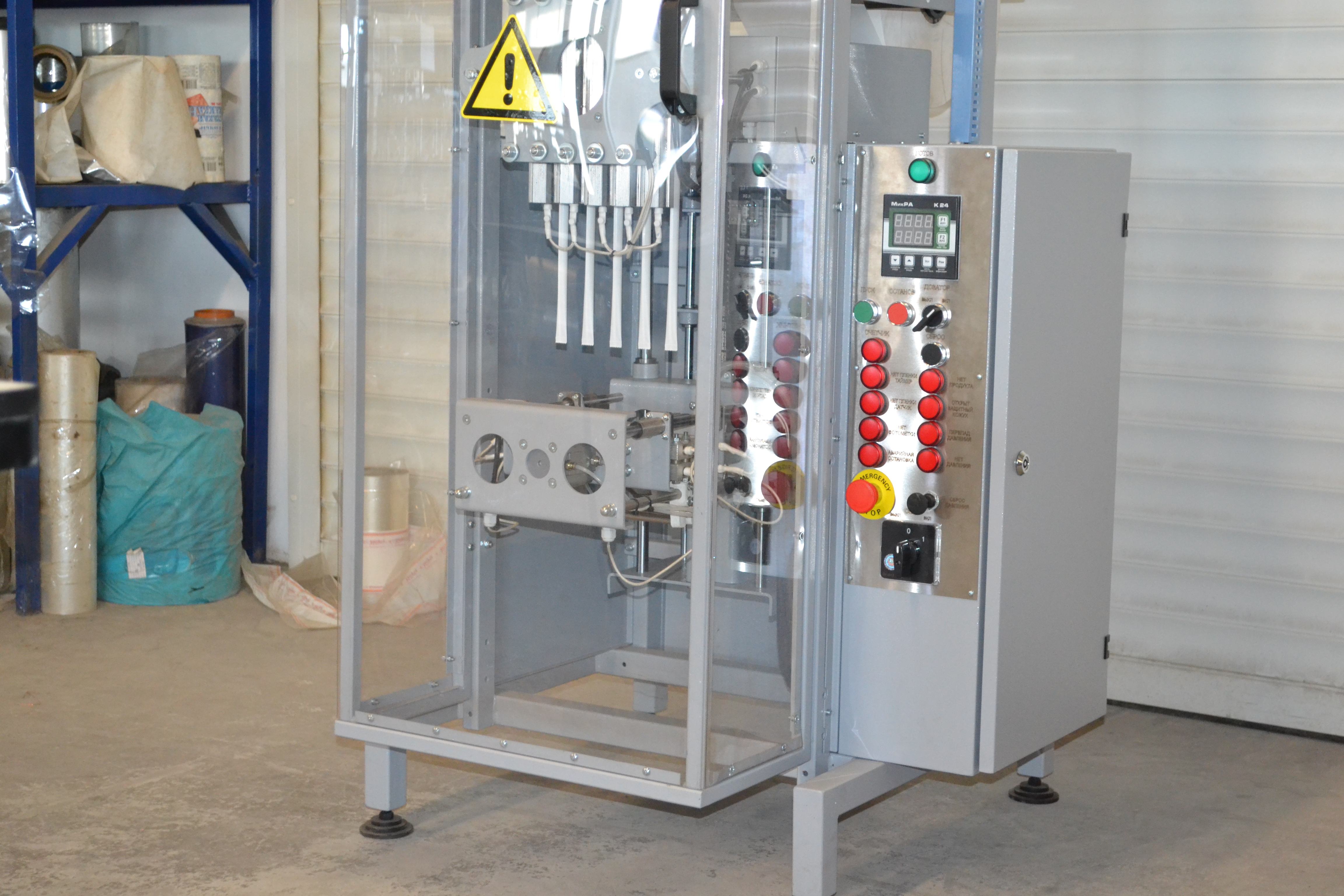

  After filling the package to the predetermined norm, the ECU sends a signal to the short-circuit motor to start the transport line drive, which will be carried out before the start of a new cycle of product packaging.

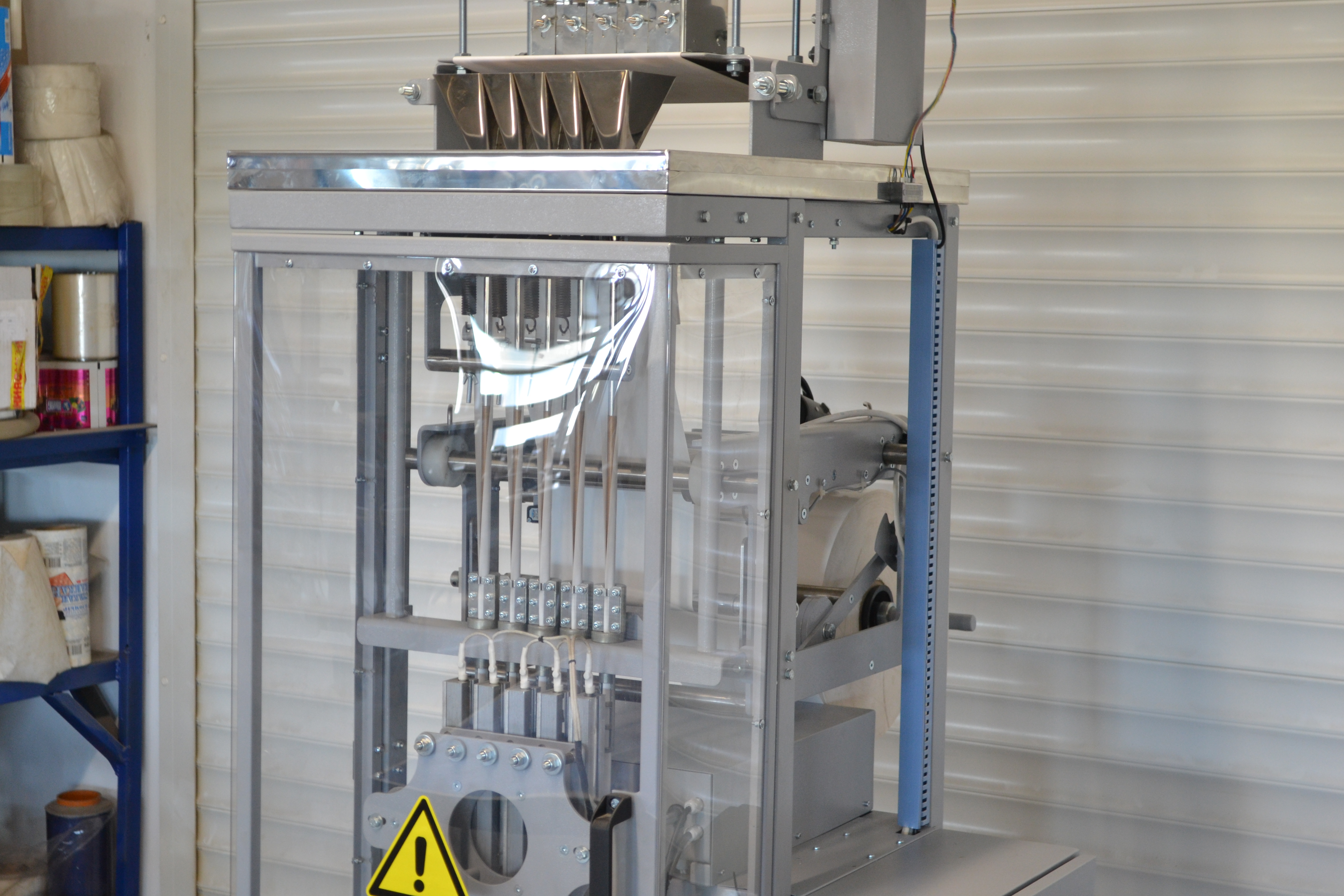

  The vuzol is sealed by the seam following the principle of constant heating. Type of seam type "Evroshіv", which is soldered, the upper seam is inside the sealed packing of the stack. The bottom and bottom seams seal the stick packaging for the next portion of the product. The moment when the stick-packing is loaded, the heating elements (sponges) are placed horizontally, as well as the soldering unit (carriage) for a given packing length in the lower part of the machine. Sponges at the moment of moving down are filled in a tight position, which allows pulling out the packing material. The roll is unrolled and the packaging material is fed through the packing stick (comir), into the sleeve along the straight tube.



  At the moment of reaching the packaging and packed products in the stick-package of the lower point of the machine, a second step is carried out for the help of a serrated (straight) knife with a path of packing material distribution. Passing through the tube, packing the product is filled with a molded package (stik). The packaging is dropped on the carrier, in a special container (box) or on the conveyor, which is to be brought in.

• Features

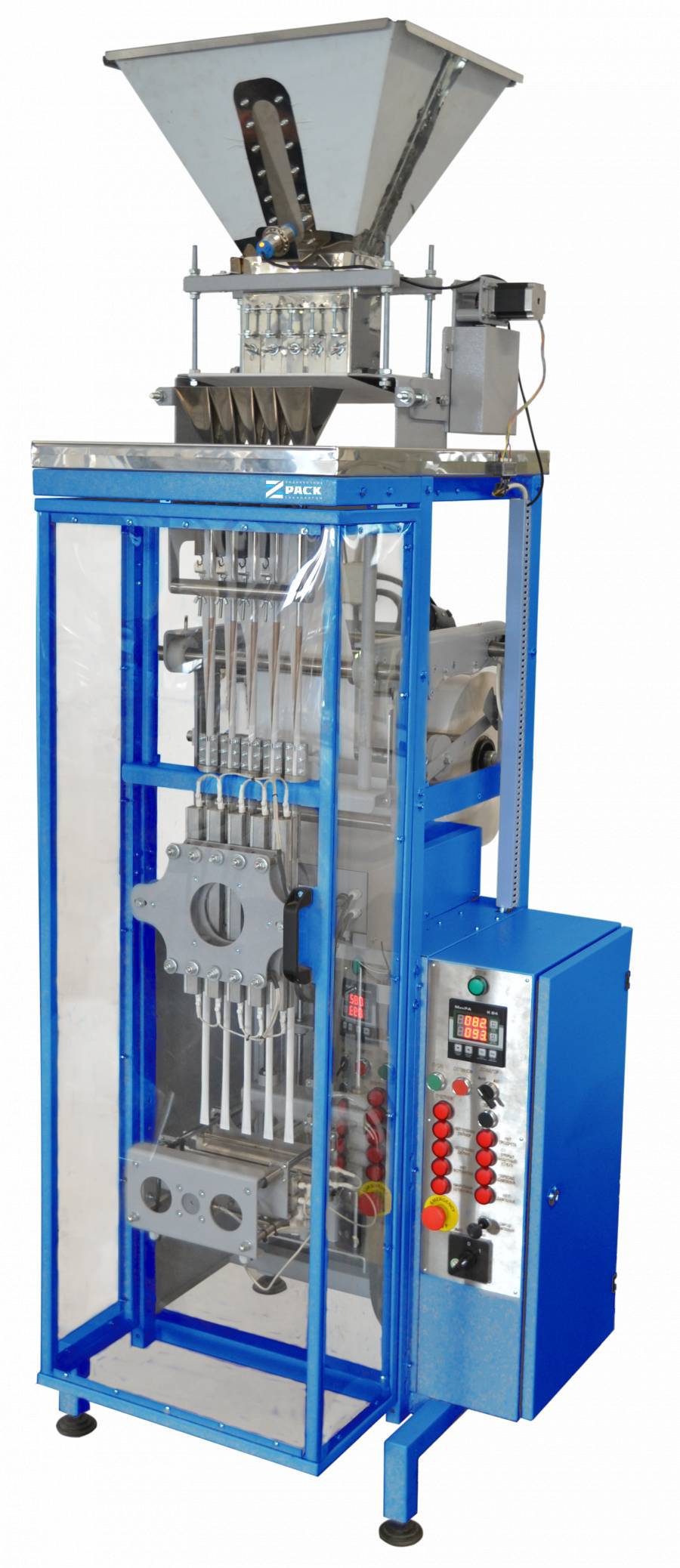

  AF-120-OM(L)1-5 is fully equipped with the AF-120-OM model. The introduction of the new model is the versatility of the streak volume dispenser (the number of transitional lines - the number of sticking to the product), which allows you to vicorate yoga for serving on a portion (dosing) is practical whether it is a kind The design has changed radically. It became possible to move the possession for an additional stacker without a pallet. The number of pneumatic drives has changed, which made the maintenance easier, and the cost of buying cheap compressor equipment has also changed. The control organs took away the additional ability to detect the zipper of the apparatus (the sensor for the presence of products in the bunker, the squeezing of the products, the zipper when the casing is opened).



  AF-120-OM(L)1 - 1 streak, productivity up to 30 packs/quill. Model 5 strumk_v, productivity up to 150 packs/quill.

• Opportunities
  2400-12000 pack/hv
