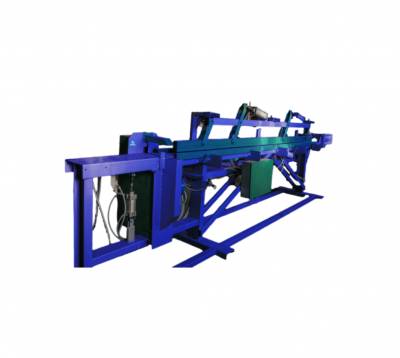

    Press wyma for longitudinal merging of wood APV-300/450/600 are a modification of the PV model.
    Additional functionality of this model is provided by:
    - ​​mechanism for automatic lifting of the stop bar
    - mechanism for pushing the finished workpiece out of the working area.
    As well as in the PV model, 3 modifications of the press are provided - APV-300-15-5,450-15-5 APV-600-15-5, which differ in the maximum length of the workpiece.
    The press wyma is completed with a trimming device and can be equipped with a glue application device.

Additional Info

  • Цена 0
  • Characteristic
    VUB-210-100
    VUB-220-120
      Workpiece length, mm up to

    2100
      Workpiece width, mm up to

    1000
      Workpiece height, mm up to

    60
      Working pressure, kg/cm2

    2-6
      Workpiece length, mm up to

    2200
      Workpiece width, mm up to

    1200
      Workpiece height, mm up to

    60
      Working pressure, kg/cm2

    2-6



  • Job description

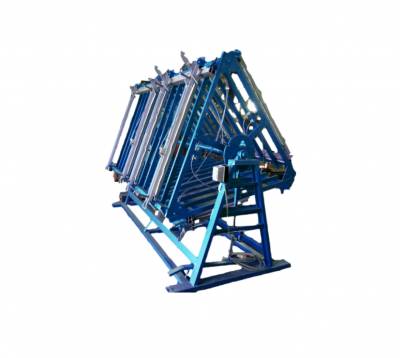

    VUB type press clamps are a modification of the VU type clamps. A distinctive feature is the presence of an additional side clamp, which allows, in addition to gluing furniture panels, to assemble window and door blocks, pressing them from 2 sides.
    Standard horizontal clamps are made with a length of 1000 mm, side clamps - 600 mm. At the request of the customer, it is possible to manufacture wyms of arbitrary sizes.
    The stroke of the main clamp is 30-40mm.

    The warranty period for the supplied products is 1 year

Additional Info

  • Цена 0
  • Characteristic

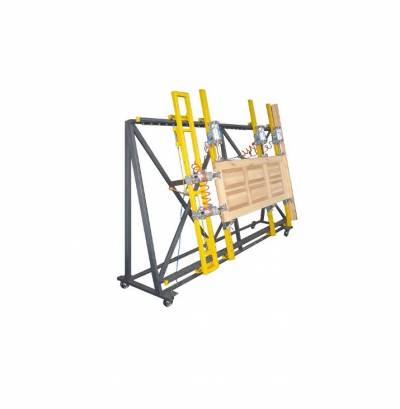

    Press clamps VS are intended for mass assembly of frame joinery products (eg doors and windows).
    Simplicity of design and ease of readjustment allows you to assemble joinery in various formats.
    The wyma has one working plane. The force of the pneumatic cylinders is controlled by the pressure in the system.
    The press can operate from a conventional car compressor with a receiver volume of 24 liters.

        Workpiece length, mm up to

    2500

      Workpiece width, mm up to

    1800

      Working pressure, atm up to

    5-10



Additional Info

  • Цена 0
  • Characteristic

    Engine power  1 kW
    Workpiece dimensions
    Maximum material width 400 mm
    Maximum material thickness 150 mm
    Maximum material length 9000 mm
    Common parameters
    The weight 500 kg
    Width 450 mm
    Height 750 mm
    User specifications
    Manufacturer Z machine
    Length 6000
    Number of engines 5
  • Job description

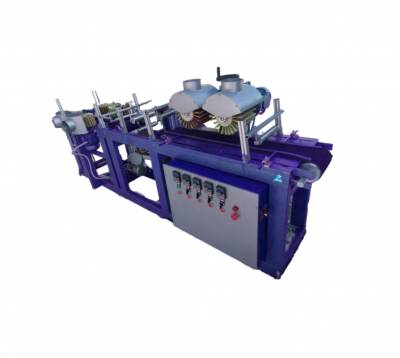

    Full cycle of rubbing and polishing the workpiece in one pass



    Smooth adjustment of the speed of each node individually



    Digital indication of the speed of each node



    Easily removable tool for each unit for washing



    German-made conveyor belt, resistant to various "aggressive" substances and UV radiation



    Five nodes in one machine



    PURPOSE:

    Designed for rubbing oil wax into wooden blanks with a maximum thickness of up to 60 mm. It is used in board finishing lines, including after SD type aging machines.



    Functionally, it consists of a base with a conveyor feed of the workpiece, 2 height-adjustable units with disk brushes or PADs and 3 units with cylindrical brushes (at the inlet and outlet of the machine).

    The feed rate of the workpiece is regulated smoothly by means of a frequency controller (2-15m/min). The speed of rotation of the working tool is also regulated by frequency converters.



    The machine is equipped with a UV drying unit with a power of 3 kW.



    The warranty period for the supplied products is 1 year

Additional Info

  • Цена 0
  • Characteristic

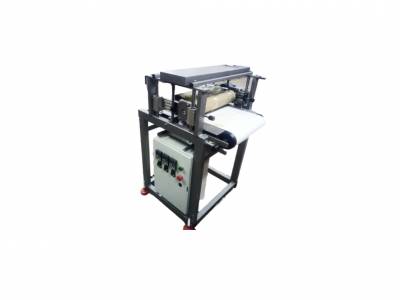

    The easy to clean compact machine is designed for single or double sided application of liquid materials such as PVA glue, Oil/Wax, UV Oil, Satin onto workpieces with a maximum thickness of up to 100mm.
    Depending on the use of a particular material, this machine is equipped with a special shaft for the required type of work.
    It is widely used in traditional woodworking, ranging from the manufacture of furniture by layer-by-layer gluing to single-sided application of glue to 0.6 mm thick veneer sheets.
    In addition, it can be used for oil and wax finishing of furniture parts and solid boards.
    Smooth adjustment of the dosage of liquid material is provided by a fine-pitch screw.
    To collect excess liquid residues, a special steel container is built in.

    Peculiarities:

    • The tank and rollers can be removed for cleaning in half a minute;
    • Easy maintenance;
    • Rugged construction. Rational and efficient.

    Types of jobs:

    • Glue roller: for applying liquid cold curing wood glue and other adhesives. It can be dispersion adhesive, white adhesive, plywood adhesive, PVA adhesive, kaurite, latex, urea-formaldehyde adhesive, epoxy resin, melamine resin, water-soluble powder adhesive with or without hardener. Tools are most often cleaned with water.
    • Oil Wax: Soft roller application with continuously adjustable roller pressure improves the oil impregnation of the wood. Thanks to the even, smooth dosing of valuable oils and liquid waxes, surfaces of extraordinary beauty can be obtained. The amount of applied oil is smoothly regulated by the use of special rollers from 6 10 to 70 g/m2. For products made of smooth wood and for products made of brushed, structural wood, rollers in different designs are used.
    • UV-Oil/Staining: Water-based stains, UV oil-wax are also applied with the same rollers. The amount of applied stain is from 10 to 70g/m2. Its use ensures purity and high quality.

    The warranty period for the supplied products is 1 year

  • Описание работы



Additional Info

  • Цена 0
  • Характеристика

    Producing country Ukraine

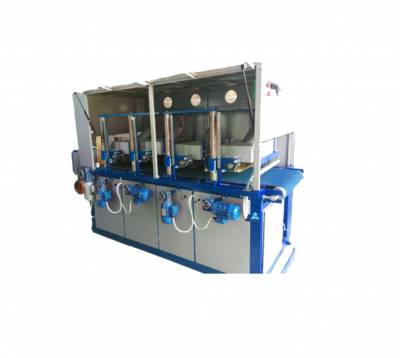

    Grinding width  650 mm
    Suction rate  4000 cu. m/hour
    Suction pipe diameter  120 mm
    Maximum feed rate  12 m/min
    Workpiece feed  Automatic
    Feed motor power  3 kW
    State New
    Max disc diameter  250 mm
    Idle speed  950 rpm
    Number of speeds 12 pcs.
    Machine type Drum
    Network settings
    Voltage  380 V
    Frequency  50GHz
    Common parameters
    The weight 920 kg
    Length 2500 mm
    Width 1300 mm
    Height 1250 mm
    Extra options
    Workpiece length  9000 mm
    Workpiece width  650 mm
    Workpiece thickness  150 mm
    Tape/sheet width  650 mm
    Table length 2500 mm
    Table width 650 mm
    Number of grinding discs  4 things.
    Bore diameter  32 mm

Additional Info

  • Цена 0
  • Характеристика

    Producing country Ukraine
    State New

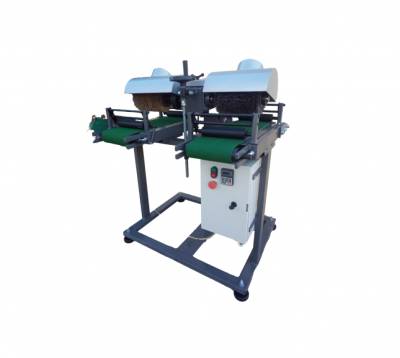

    Minimum belt speed  2 m/min
    Maximum tape speed  12 m/min
    Number of horizontal brushes 2 pcs.
    Maximum rotation speed  950 rpm
    Maximum brush diameter 250 mm
    Brush lift Manual
    Number of engines 1 PC.
    Engine power  2 kW
    Workpiece dimensions
    Maximum material width 200 mm
    Maximum material thickness 150 mm
    Maximum material length 9000 mm
    Common parameters
    The weight 180 kg
    Length 650 mm
    Width 600 mm
    Height 750 mm

Additional Info

  • Цена 0
  • Характеристика

    Producing country Ukraine
    Power consumption  6 kW
    Grinding width  200 mm
    Suction rate  4000 cu. m/hour
    Suction pipe diameter  100 mm
    Maximum feed rate  12 m/min
    Feed motor power  1 kW
    State New
    Max disc diameter  250 mm
    Idle speed  950 rpm
    Number of speeds 12 pcs.
    Machine type Drum
    Network settings
    Voltage  380 V
    Frequency  50GHz
    Common parameters
    The weight 650 kg
    Length 2500 mm
    Width 600 mm
    Height 1350 mm
    Extra options
    Workpiece length  9000 mm
    Workpiece width  200 mm
    Workpiece thickness  100 mm
    Tape/sheet width  200 mm
    Table length 2500 mm
    Table width 200 mm
    Number of grinding discs  6 pcs.
    Bore diameter  30 mm
