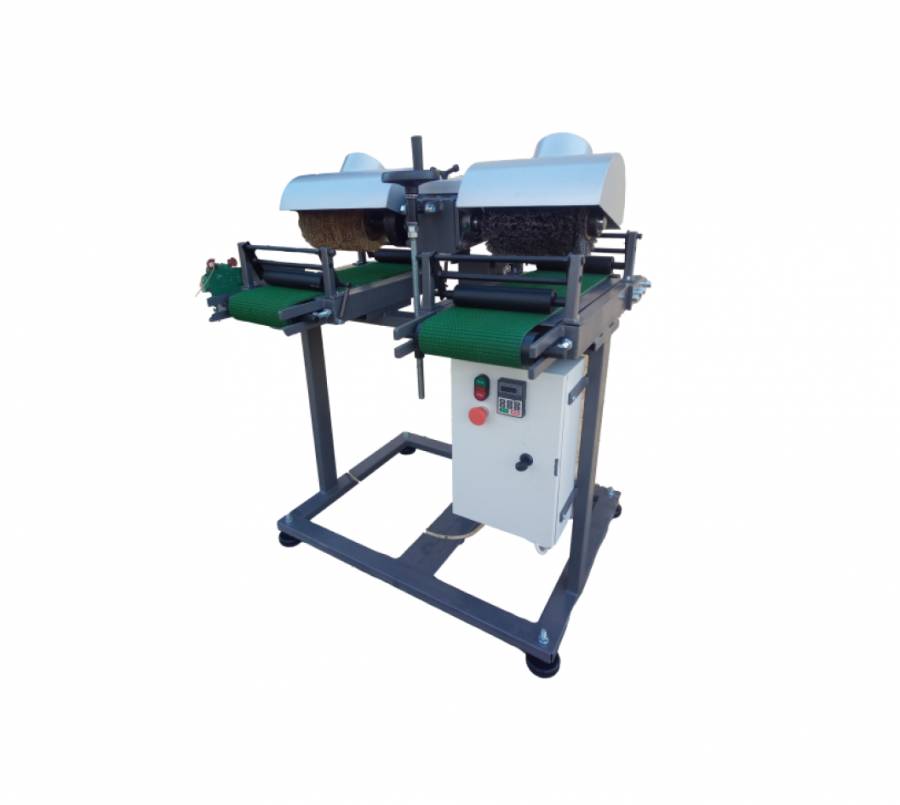

Aging Machine SD-1T/SD-1Ti

Aging Machine SD-1T/SD-1Ti

APPLICATION:
Enterprises and workshops for the production of furniture, joinery and other woodworking industries.

ADVANTAGES:
— brushes are located on both sides of the machine. After processing on a metal brush, the workpiece is fed to an abralon brush;
— Automatic broaching of the part (German conveyor belt);
— Italian gear company STM;
- Smooth adjustment of the feed rate of the workpiece from 2 to 12 m / s;
- Inverter for brush rotation - the machine can be used as a grinder (mod.SD-1Ti);
— Czech components (brushes);
- Separate reverse of each working brush

General and technical characteristics:

Email Engine 1.0-1.5 kW/950 rpm.
Supply voltage 3 phase/380v or 220v
Spindle shaft length 240+240 mm
Tool seat Ø 30 mm
Number of shafts 2 pcs
Tool outside diameter 150…250 mm
Naib. Shir. blanks 200 mm
Total weight 180 kg
Dimensions l/w/h 650x600x750 mm
Frequency converter * (option mod.SD-1Ti) 300-1500 rpm

Automatic conveyor with stepless feed adjustment 2pcs x 200mm 0.18kw/2-12m/min
Duct diameter 125 mm

The price does not include tools.

The warranty period for the supplied products is 1 year

0 грн.
Find out the price

Find out the price






Additional Info

  • Цена
    0
  • Характеристика

    Producing country Ukraine
    State New
    Minimum belt speed  2 m/min
    Maximum tape speed  12 m/min
    Number of horizontal brushes 2 pcs.
    Maximum rotation speed  950 rpm
    Maximum brush diameter 250 mm
    Brush lift Manual
    Number of engines 1 PC.
    Engine power  2 kW
    Workpiece dimensions
    Maximum material width 200 mm
    Maximum material thickness 150 mm
    Maximum material length 9000 mm
    Common parameters
    The weight 180 kg
    Length 650 mm
    Width 600 mm
    Height 750 mm
