• Characteristic

  VUB-210-100	VUB-220-120
  Workpiece length, mm up to   2100   Workpiece width, mm up to   1000   Workpiece height, mm up to   60   Working pressure, kg/cm2   2-6	Workpiece length, mm up to   2200   Workpiece width, mm up to   1200   Workpiece height, mm up to   60   Working pressure, kg/cm2   2-6

• Job description

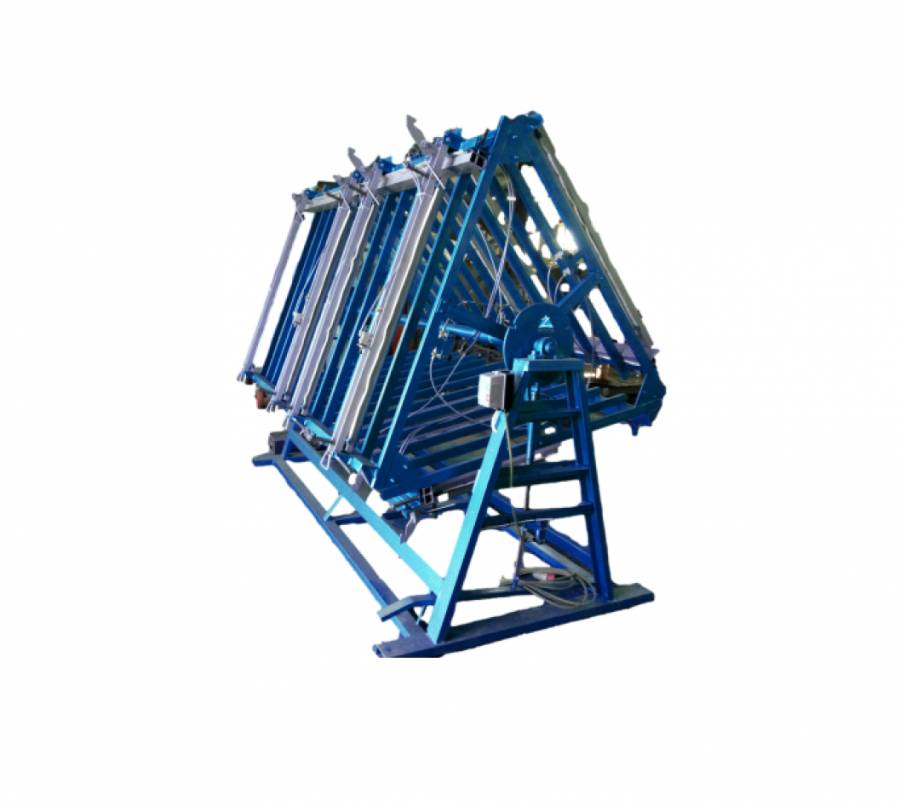

  VUB type press clamps are a modification of the VU type clamps. A distinctive feature is the presence of an additional side clamp, which allows, in addition to gluing furniture panels, to assemble window and door blocks, pressing them from 2 sides.
  Standard horizontal clamps are made with a length of 1000 mm, side clamps - 600 mm. At the request of the customer, it is possible to manufacture wyms of arbitrary sizes.
  The stroke of the main clamp is 30-40mm.

  The warranty period for the supplied products is 1 year
