Additional Info

• Цена
  0
• Characteristic

  Engine power	1 kW
  Workpiece dimensions
  Maximum material width	400 mm
  Maximum material thickness	150 mm
  Maximum material length	9000 mm
  Common parameters
  The weight	500 kg
  Width	450 mm
  Height	750 mm
  User specifications
  Manufacturer	Z machine
  Length	6000
  Number of engines	5

• Job description

  Full cycle of rubbing and polishing the workpiece in one pass



  Smooth adjustment of the speed of each node individually



  Digital indication of the speed of each node



  Easily removable tool for each unit for washing



  German-made conveyor belt, resistant to various "aggressive" substances and UV radiation



  Five nodes in one machine



  PURPOSE:

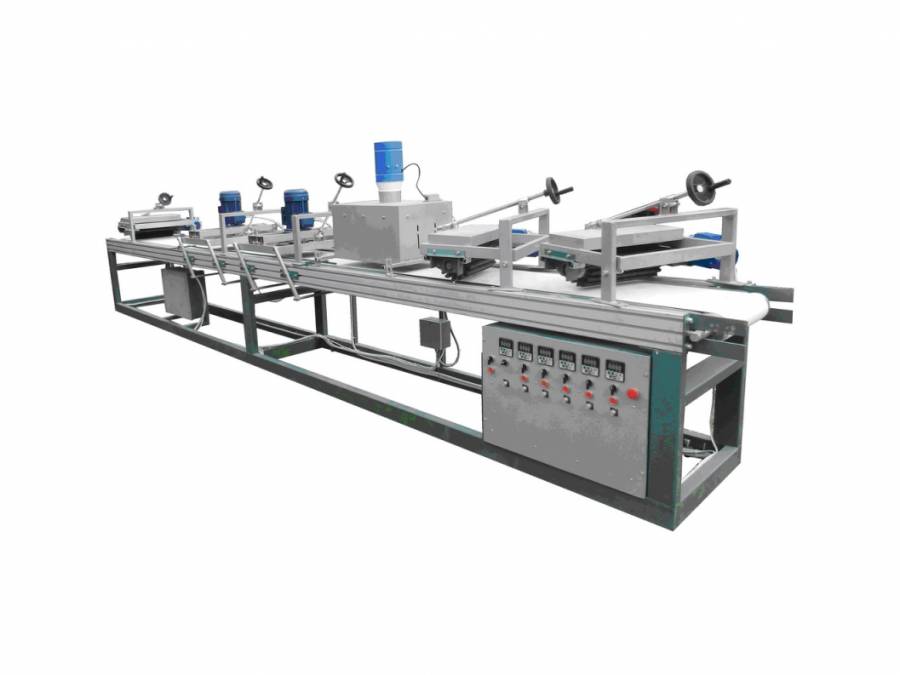

  Designed for rubbing oil wax into wooden blanks with a maximum thickness of up to 60 mm. It is used in board finishing lines, including after SD type aging machines.



  Functionally, it consists of a base with a conveyor feed of the workpiece, 2 height-adjustable units with disk brushes or PADs and 3 units with cylindrical brushes (at the inlet and outlet of the machine).

  The feed rate of the workpiece is regulated smoothly by means of a frequency controller (2-15m/min). The speed of rotation of the working tool is also regulated by frequency converters.



  The machine is equipped with a UV drying unit with a power of 3 kW.



  The warranty period for the supplied products is 1 year
